STEP 1: What do I need to install Amphora Station in my warehouse (with keyboard)?

What products do I need for the installation of the Amphora Station?

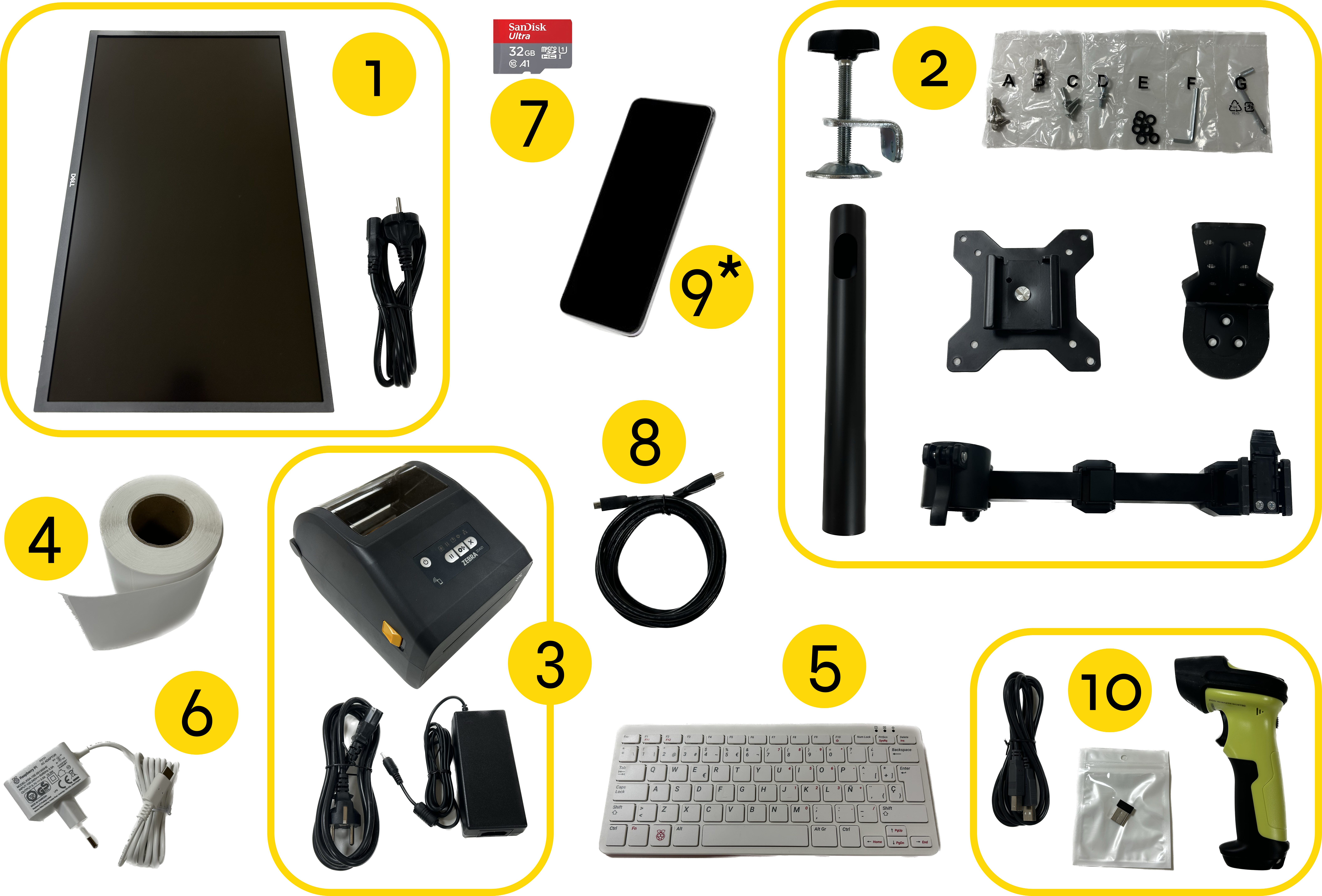

To install the Amphora Station you will need the products listed below. You can also see the link to the specific product you need to obtain in each case.

1. 27" Monitor (Dell SE2722HX 27" Full HD (1920x1080) Monitor, 75Hz, VA, 4ms, AMD FreeSync, HDMI, VGA, Black : Amazon.co.uk: Computers)

2. Monitor Stand (Amazon Basics - Simple Monitor Stand, height adjustable arm, steel, Black : Amazon.co.uk: Computers)

3. Zebra ZD421d Printer (Zebra ZD421d - Tear-Off Edge Printer (203 DPI, Thermal, 104 mm print width, BTLE, USB, USB Host interfaces ZD4A042-D0EM00EZ), Grey (Dark) : Amazon.co.uk: Office & Stationery)

4. Label roll (2 rolls (1000 labels) white direct thermal labels (6 x 4 inches) 100 mm x 150 mm for Zebra GK420D GX420D GK420T printer : Amazon.co.uk: Office & Stationery)

5. Raspberry Pi Keyboard

6. Raspberry Pi power cable (RASPBERRY power supply USB-C 5.1V 3A - white - for raspberry Pi 4 model B (1873421) : Amazon.co.uk: Computers)

7. Micro SD (SanDisk SDSQUA4-032G-GN6MA Ultra 32 GB - microSDHC Memory Card + SD Adapter, Read speed up to 120 MB/s, Class 10, U1, Red /Grey : Amazon.es: Computers)

8. HDMI to mini-HDMI cable (Amazon Basics - Micro HDMI to HDMI cable, flexible, 1.8 m, Black : Amazon.co.uk: Electronics)

9. Mobile phone (not provided by Amphora)

10. Barcode reader/scanner (https://www.amazon.es/gp/product/B075XKWG9M?ie=UTF8&psc=1)

Do I need any other components to install Amphora Station?

1. Power strip with at least 4 sockets.

2. Stable Wi-Fi connection (wireless or wired) with range over the entire picking area. Here you can test the quality of your Wi-Fi connection.

3. Packing support table on which the Amphora Station can be installed.

4. Mobile phone with a good camera and mobile data.

5. Optionally and complementary to the barcode reader, you can have a finger scanner. In this case, it should be this: NetumScan Bluetooth Bluetooth Mini Ring 1D 2D QR Handheld Barcode Scanner Compatible with Windows, Mac OS, Android 4.0+, iOS, supports PDF417 DataMatrix On Screen and Paper NSR2 scanning : Amazon.co.uk: Office & Stationery.

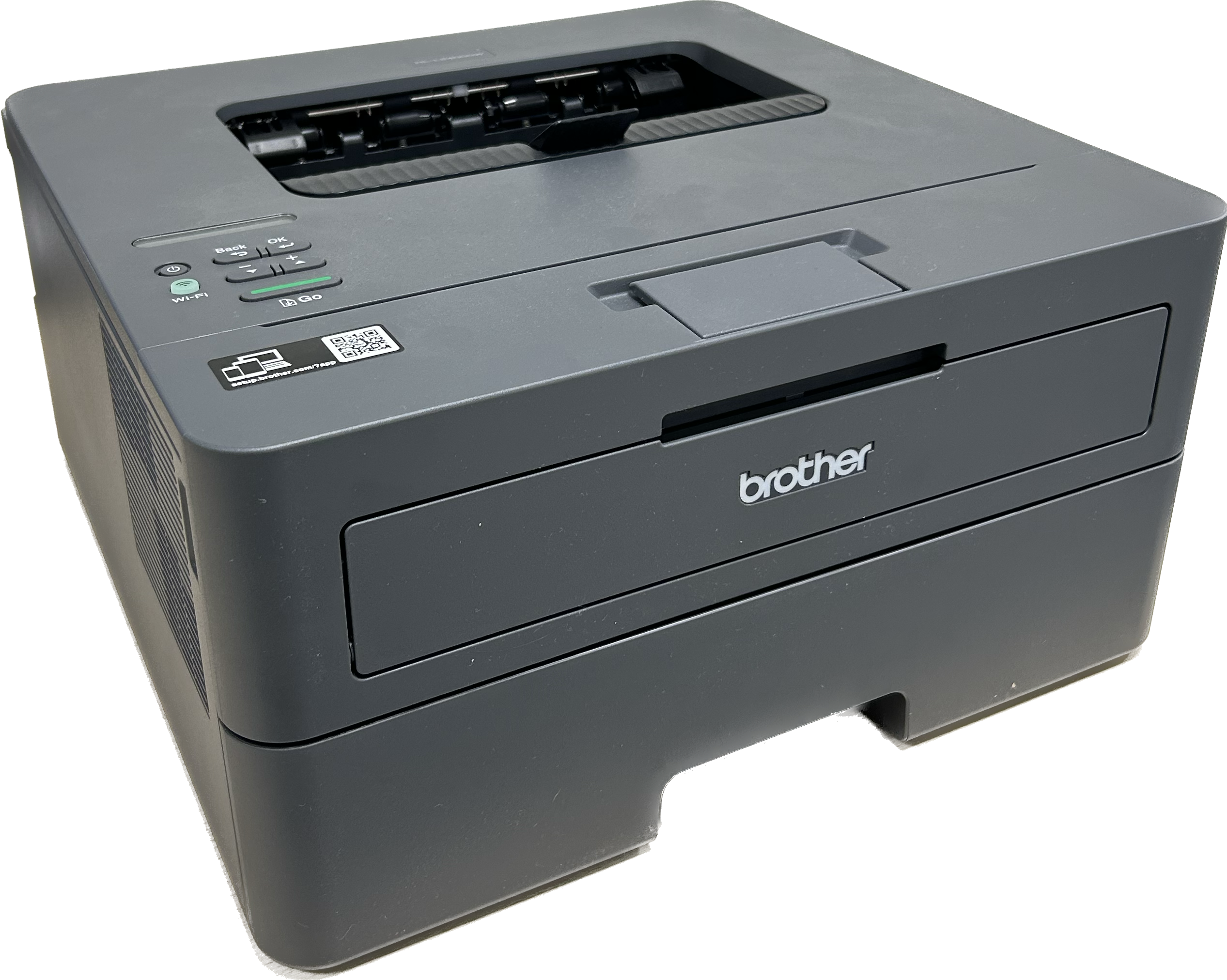

6. We recommend having a Brother HLL2400DWE printer to be able to print invoices (Brother HLL2400DWE. Monochrome laser printer with WiFi and duplex printing : Amazon.co.uk: Computers).
