STEP 0 - 2' - 2

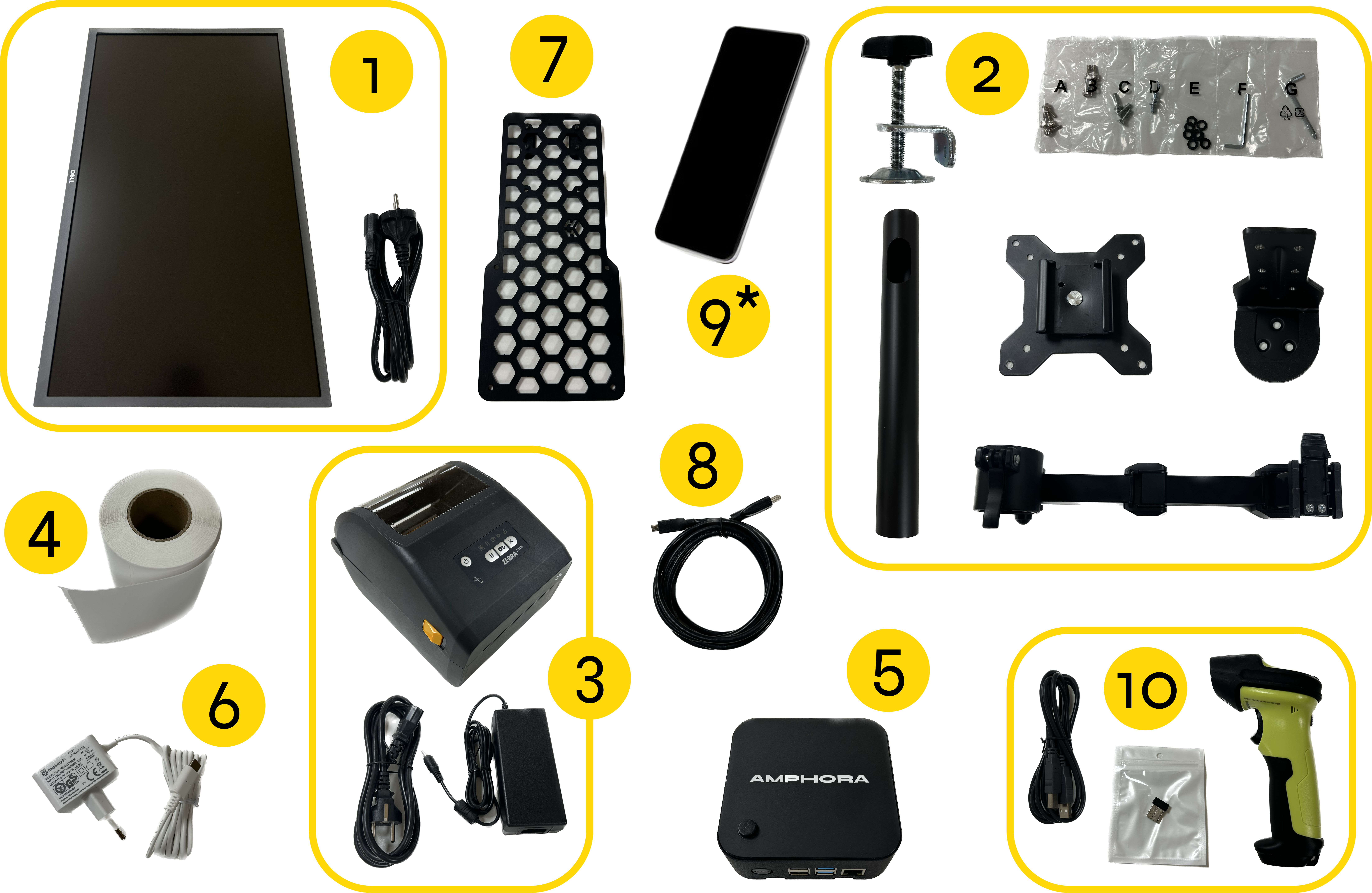

Before you start, prepare the material you will need for the installation of the Amphora Station in a comfortable space.
STEP 1 - 6'
Set up the monitor mount. You must follow the instructions on the box of the bracket itself.
Please note that you will need to place the Amphora Box bracket between the screen and its own bracket piece, so that it looks like the following example.
IMPORTANT!
- Make sure that the table on which you mount the Amphora Station has a suitable base so that the mount is stable.
- Install the Amphora Station in a place in the warehouse where you have the best sellers nearby to make it easier for the pickers.
STEP 2 - 20''

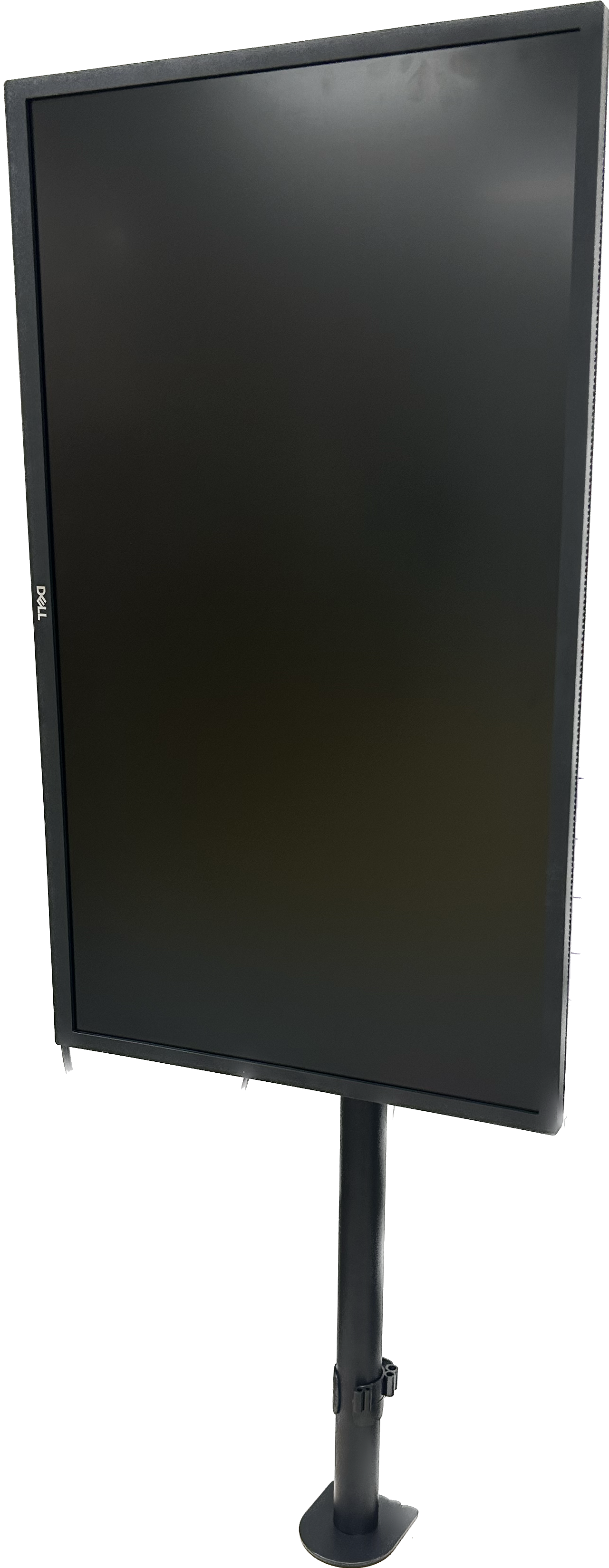

Attach the monitor to the mount so that the logo is on the left. You must follow the instructions on the box of the mount itself.
IMPORTANT!
The front logo of the monitor should be on the left. Otherwise, once installed, the projected image on the screen will be upside down.
STEP 3 - 30''
Connect the monitor's power cable to the power strip.
STEP 4 - 20''

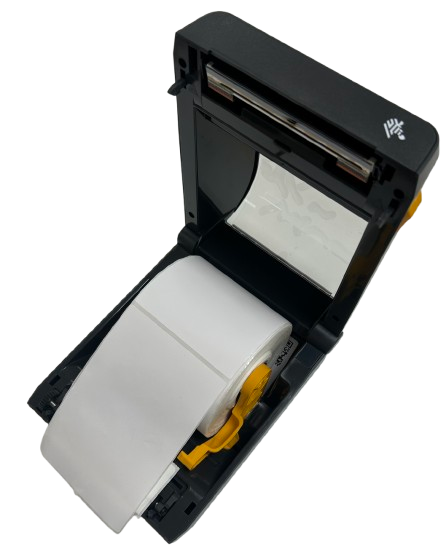

Insert the label roll into the Zebra printer.
In order for the printer to be correctly synchronised with the labels, it must be calibrated. It is possible that at some point the printer may become descaled and you may have to repeat the process. Here's how to do it.
STEP 5 - 30''

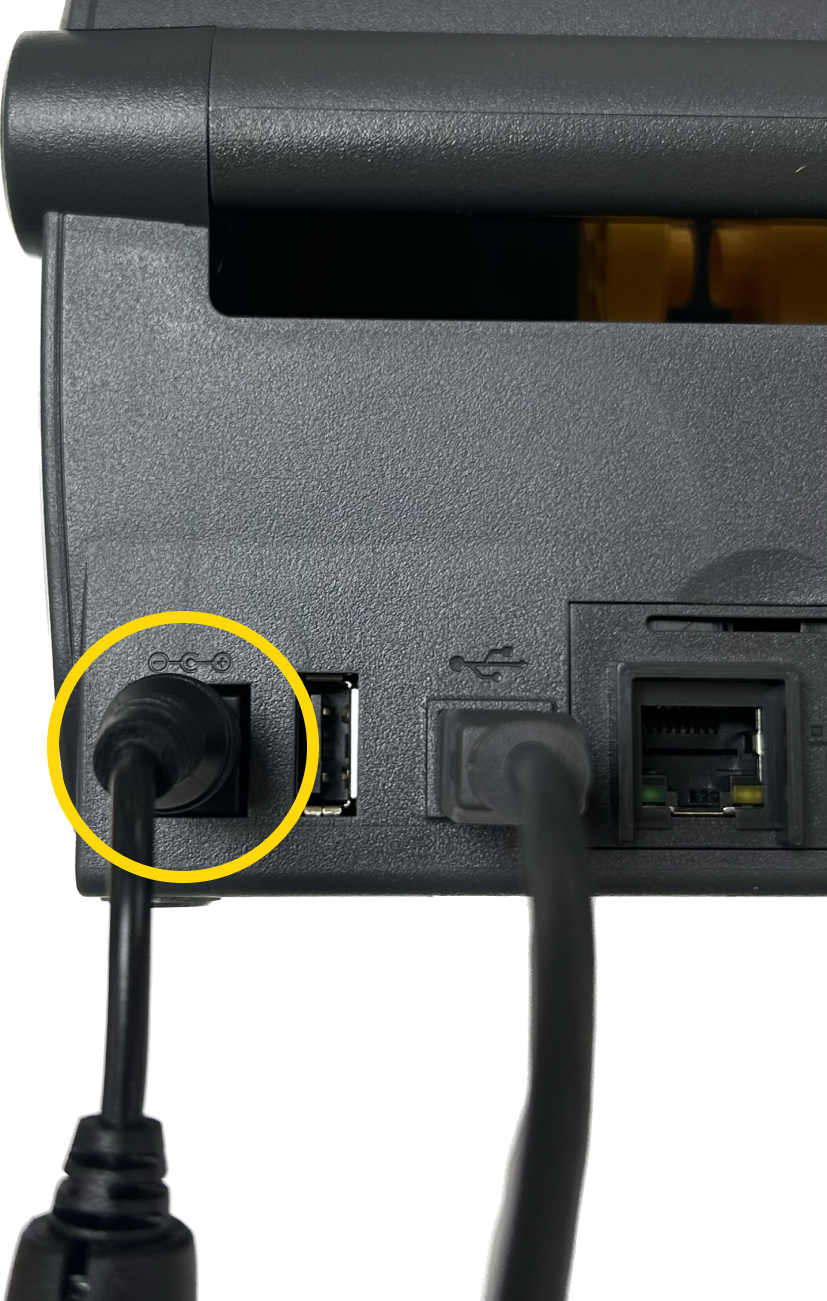

Connect the Zebra printer to the power strip.
STEP 6 - 30''

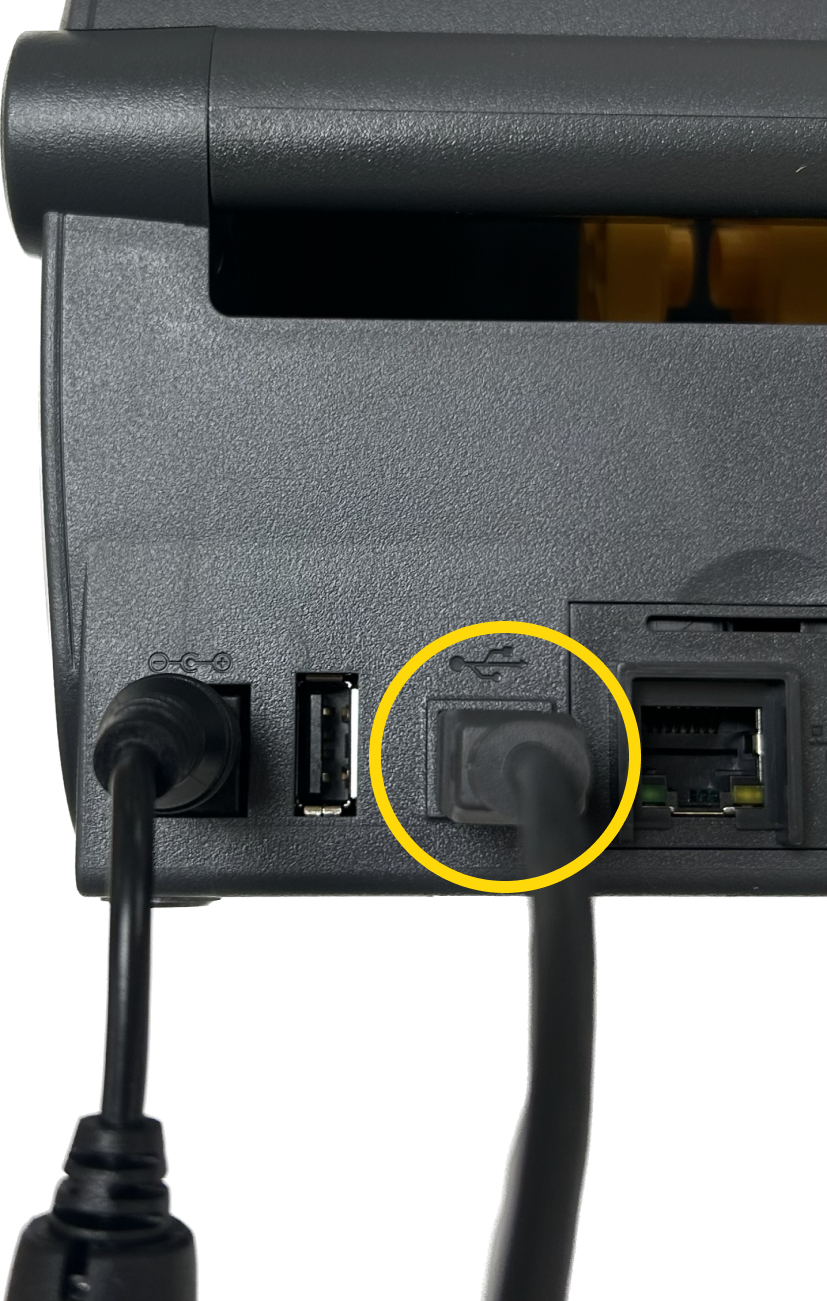

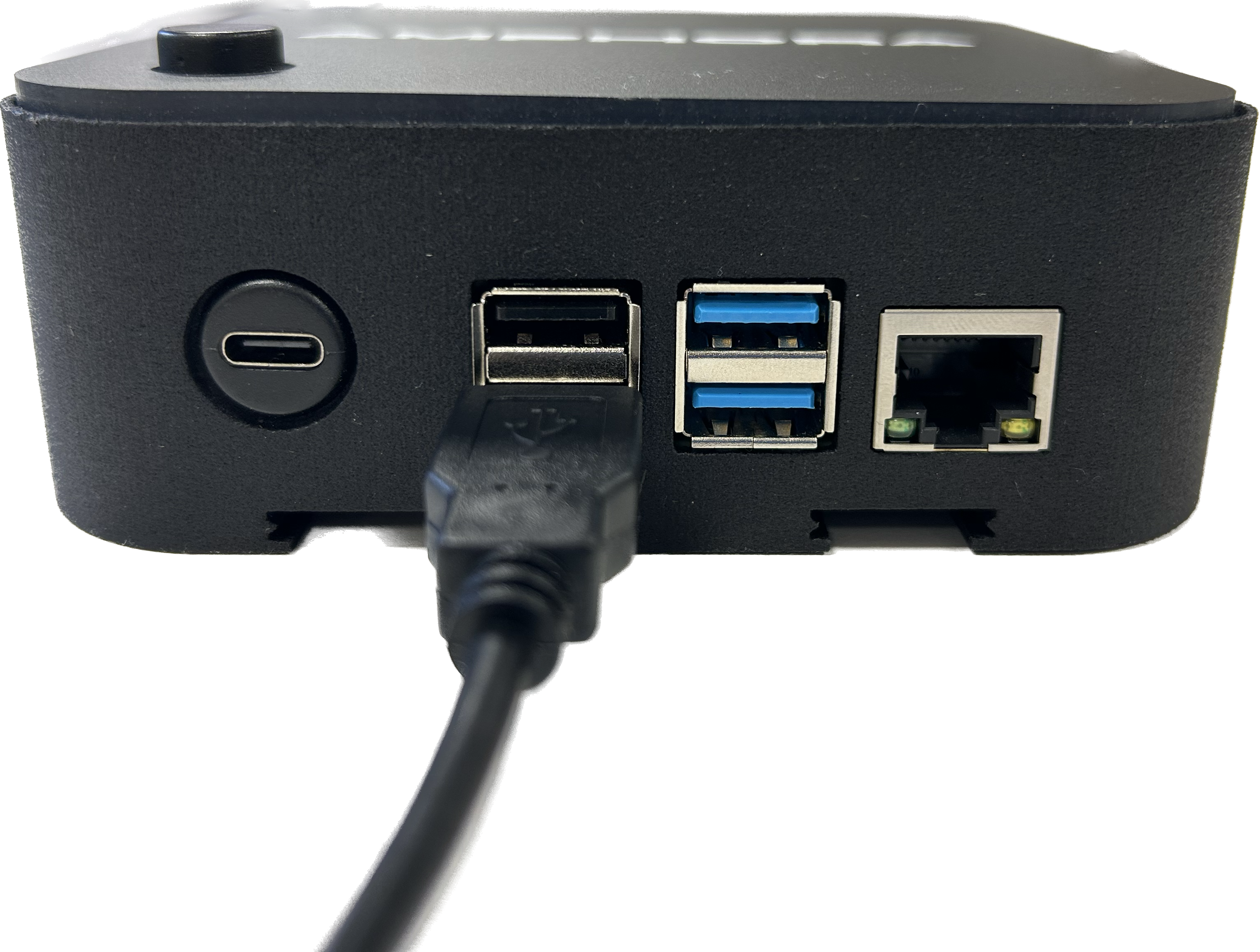

Connect the Zebra printer to the Amphora Box.
STEP 7 - 30''

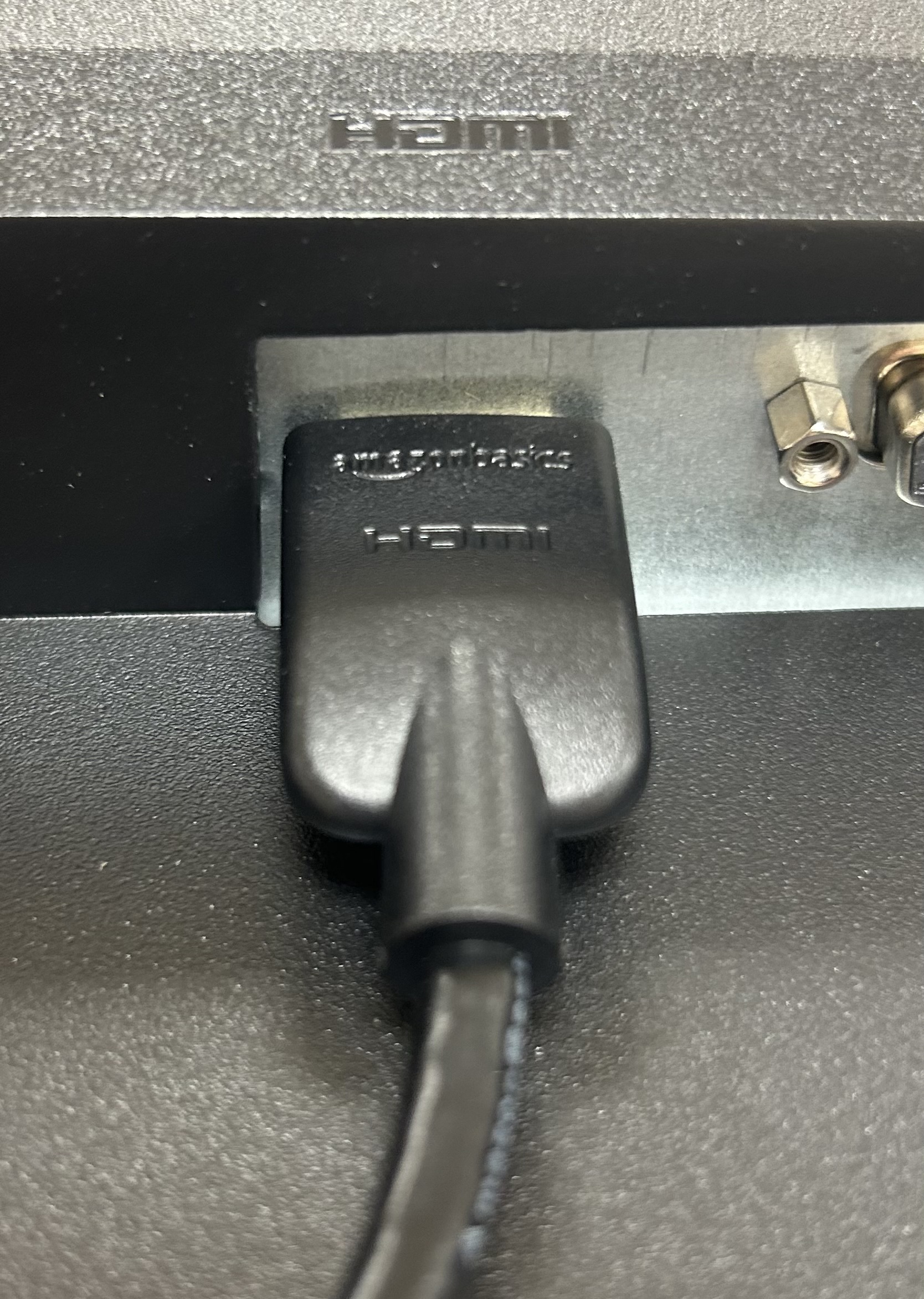

Connect the monitor to the Amphora Box with the HDMI-mini HDMI cable.
STEP 8 - 20''

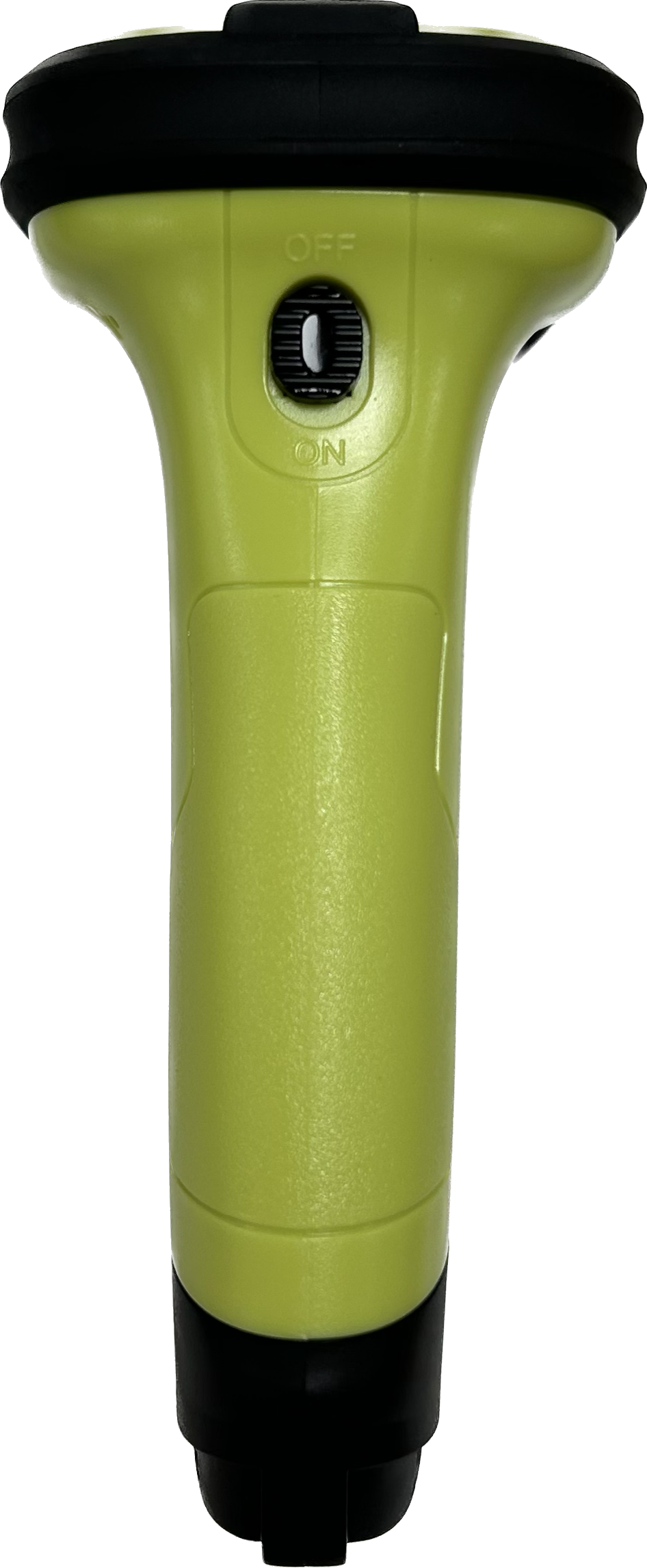

Insert the USB of the barcode reader (scanner) into the Amphora Box. In the scanner box there is a cable with two USB outputs (type A and type B) for charging the scanner when the battery runs out. We recommend turning the scanner off when not in use to save battery power.
STEP 9 - 20''
Connect the power cable to the Amphora Box.
STEP 10 - 20''

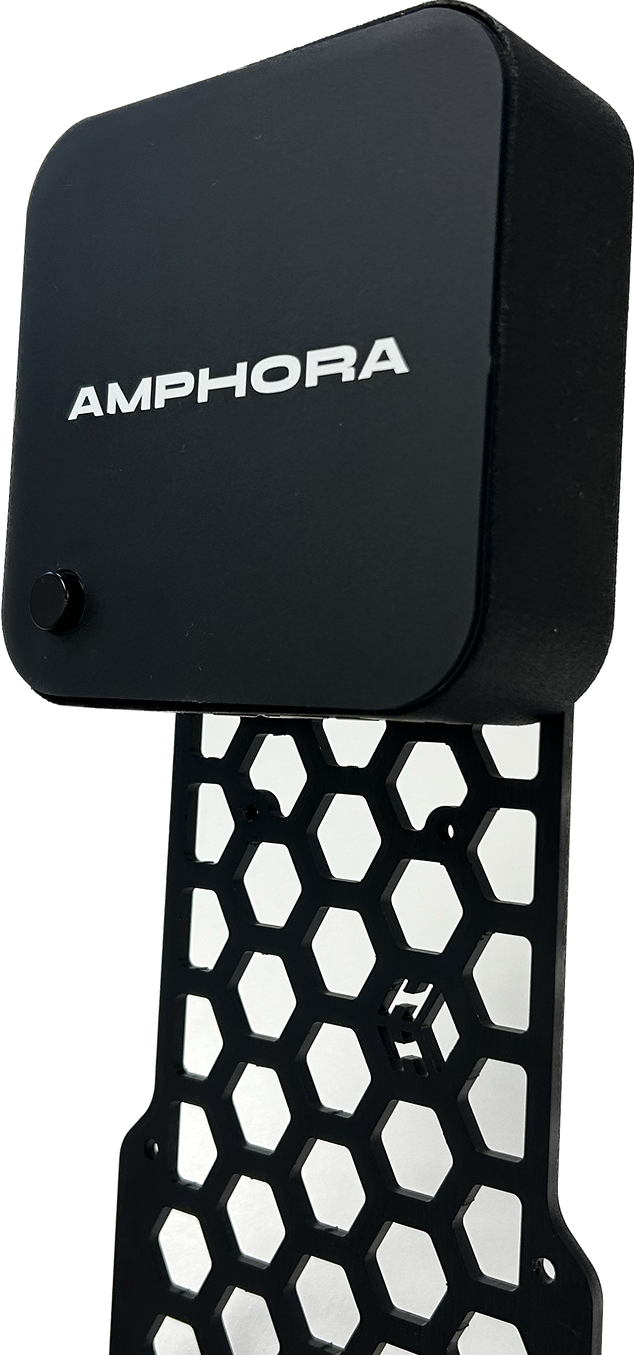

Insert the Amphora Box into the slot in the mount.
STEP 11
Connect the Amphora Station to the wifi network.
IMPORTANT!

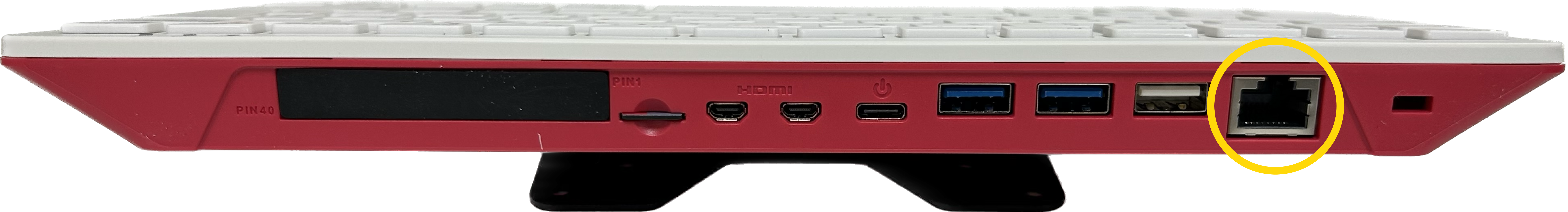

It can be connected to the internet via a LAN cable (Amphora does not provide this cable).
How can I install the document printer?
If you have a Brother HLL2400DWE printer, install it as follows:
The cable you must use to connect the printer to the Amphora Box (step 6) can be found in the barcode reader box. This is the cable that also serves to charge the scanner.
